Import grid cards

Use the Import Grid Cards bulk operation to import grid cards and associate their contents with users or add them as unassigned grid cards. You also assign grid cards. This section provides details to import grid cards in bulk. See Bulk assign authenticators for more information on bulk assigning grid cards.

CSV file format

The following is a sample CSV file to help you get started:

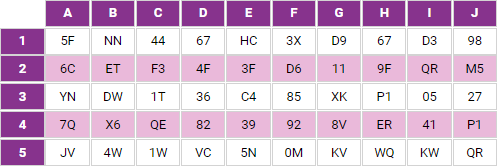

Card #,serialNumber,userId,state,A1,B1,C1,D1,E1,F1,G1,H1,I1,J1
1,12345,user1,active,5F,NN,44,67,HC,3X,D9,67,D3,98

Download a sample file:

For assigned grid cards: BulkImportGridsAssignedSample.csv

For unassigned grid cards: BulkImportGridsUnassignedSample.csv

Import grid cards

When importing grid cards in bulk, you can upload the following files:

A CSV file that includes Card #, serialNumber, userID, and state columns followed by the row-column indicator for each row and column.

The column order is mandatory. They must be in this order: Card #, serialNumber, userID, state followed by grid card contents. See the following example:

If a userID is not specified, the bulk operation associates the grid card to the user or adds unassigned grid cards.

Identity as a Service supports the following grid card states:

ACTIVEACTIVE

The grid card has been used at least one time. The last used date of the imported grid card is set to the current date.

INACTIVEINACTIVE

The grid card cannot be used at this time. The last used date of the imported grid card is set to the current date.

UNASSIGNEDUNASSIGNED

The grid card has not been assigned to a user. This state is only valid if a userId is not specified for the grid card.

PENDINGPENDING

The grid card can be used for authentication. The first time the user successfully authenticates with the grid card, the card state changes to ACTIVE.

CANCELEDCANCELED

The grid card can no longer be used. Canceled grid cards count toward the maximum number of grid cards a user can have. Canceled grid cards:

Can be deleted

Cannot go back to another state

Cannot be used for authentication

Cannot be unassigned

If not specified, the default state is PENDING.

Note: The state column is not case-sensitive. For example, Active, active, and ACTIVE is recognized.

When importing unassigned grid cards, the state column is ignored.

If an existing unassigned grid card serial number exists for the one being imported and the grid card is being associated with a user, the import will take place if the grid contents is the same.

Entrust Identity Enterprise grid card states can be used when importing grid cards into Identity as a Service. The Identity as a Service import grid operation converts the grid card state as follows:

Entrust IdentityGuard State	Identity as a Service State
CURRENT	ACTIVE
HOLD	INACTIVE
HOLD PENDING	INACTIVE
PENDING	PENDING
CANCELED	CANCELED

When importing grid cards with a state value of ACTIVE, INACTIVE, CURRENT, or HOLD, the last used date is set to the current date to identify the card as being previously used.

Grid card attributes

The following table summarizes supported Identity as a Service grid card import attributes.

Table: Grid card import attributes

Attribute	Header Value	Required
Card #Card # The grid card number. This is not used during a bulk import.	Card #	no
Serial NumberSerial Number The serial number of the grid card.	serialNumber	yes
User IDUser ID The user ID to associate the grid card to. If no user ID is provided, the grid card is imported in an UNASSIGNED state.	userId	no
StateState The state of the grid card. Supported values are: ACTIVE INACTIVE UNASSIGNED PENDING CANCELED CURRENT HOLD HOLD_PENDING	state	no Default value is PENDING if userId is specific, otherwise the state is not used and the grid card is loaded as unassigned.

Bulk import grid cards

How to bulk import grid cardsHow to bulk import grid cards

Click > Bulk Operations. The Bulk Operations page appears.

Click . The Add Bulk Operation page appears.

From the Actions drop-down list, select Import.

From the Operations drop-down list, select Grid Cards.

Select the File Delimiter Pipe (|) or Comma (,). The File Delimiter type identifies the character in your CSV file used to specify the boundary between each user or group name.

Note: If a data field requires a delimiter value or white space, put quotation marks around that field. If you do not, the information will not import.

Click Include Group for Unassigned Grids. If selected, unassigned grids from an Entrust IdentityGuard CSV file are assigned to groups based on the group column in the file.

Set the Maximum Number of Retries to set the number of bulk import attempts if it is not immediately successful. The default value is 5. This setting prevents an endless number of retry attempt if the operation fails.

Enter a unique Name that identifies the operation in the Bulk Operations List page.

Enter a Description that describes the purpose of the operation.

Click Initiate. The File to upload dialog box appears.

Click the checkered box and browse to select your bulk import file and click Open.

Click Upload. The Start/Stop dialog box appears.

Click Start. When the upload completes, a Finished prompt appears.

Click Finished. You are returned to the Bulk Operations List page. Your bulk operation appears in the list. You can verify the status of the bulk operation.

To see a summary of the upload, click to view the details of the bulk operation, including any error information.

Click in the Refresh column to refresh the status of a bulk operation. This option appears only when a refresh is available.

The imported grid cards appear on the Grid Card page.

Edit group membership

If you need to change the group membership for a grid card, do the following:

Click > Resources > Grid Card. The Grid Cards page appears.

Click next to the grid card. The Edit Grid Card dialog box appears.

Add or delete groups as required.

Click Submit.
